Some pictures of old antenna systems I've had:
(click on image for full size view)

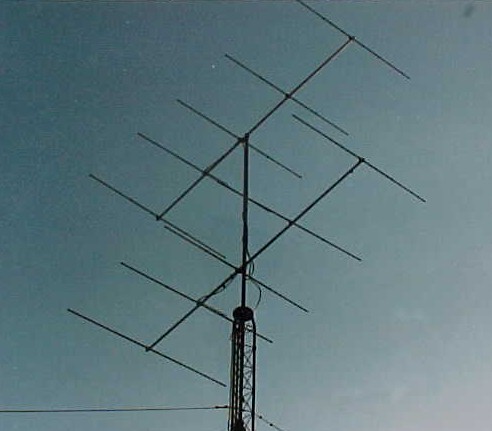

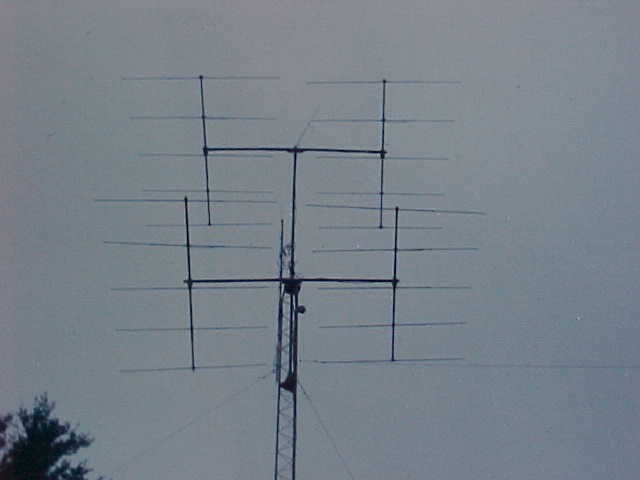

A pair of 5el 6 meter beams                 Four  Cushcraft 5el beams in I frame
YO modified 16' booms                       Pattern was Too sharp for contesting

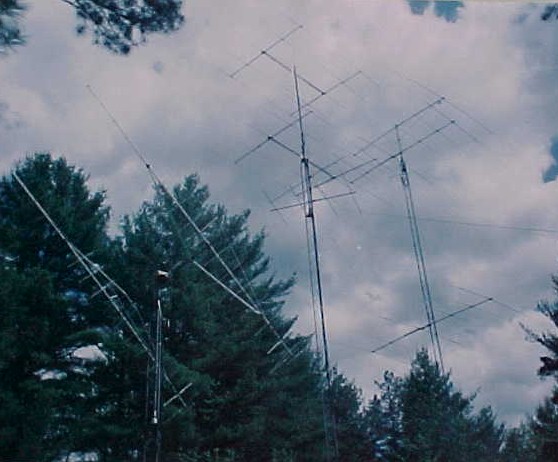

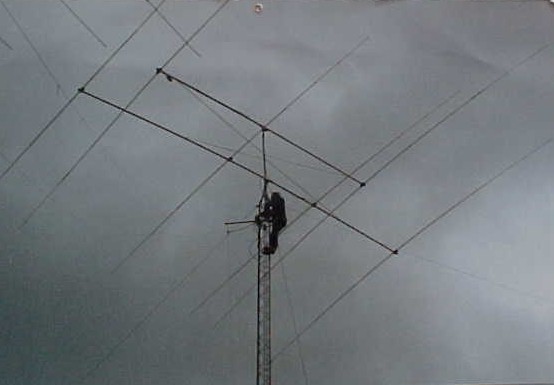

Cushcraft 2el 40 over 4el 20 at 90'            Front tower is 30' with a pair of 3219 2 meter
                                                              beams on AZ-EL rotors for EME, behind that
                                                              the 6 meter tower, and then the HF tower with
                                                              a 2 el 40 and stacked TH6DXX's at 45 & 90 feet
